Call Us Now! In compact pipeline systems where space, reliability, and fluid control are priorities, Ashok Polymers offers the PP UPVC Ball Valve Short Handle – a rugged, efficient, and space-saving valve engineered for high-performance use. Ideal for agricultural, residential, and industrial water management systems, this valve provides seamless shut-off control and longevity, all within a compact form factor.
Made using premium-grade Polypropylene (PP) and Unplasticized Polyvinyl Chloride (UPVC), the valve exhibits excellent chemical resistance, UV stability, and operational strength in both indoor and outdoor settings.

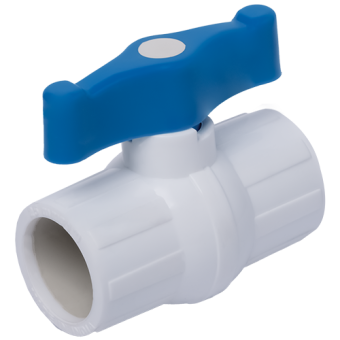

What is a PP UPVC Ball Valve Short Handle?
A PP UPVC Ball Valve Short Handle is a manually operated valve featuring a spherical closure unit (the ball) that rotates to start or stop fluid flow. The ball has a bore through the center, and when aligned with the pipe, fluid flows freely. A 90-degree turn of the short handle closes the valve by rotating the ball perpendicular to the flow, ensuring a complete seal.
This short handle version is designed specifically for installations with limited space, offering ease of use without sacrificing control. The valve body is constructed from a blend of PP and UPVC, combining the flexibility and chemical inertness of PP with the mechanical rigidity and strength of UPVC.
How Does It Work?
- When the handle is aligned with the pipe (open position), the bore inside the ball allows fluid to pass through.
- When turned perpendicular (closed position), the ball blocks the passage, halting the flow completely.
| Technical Details | |||||||
|---|---|---|---|---|---|---|---|
|
Size |
Product Code |
Packing Details |
|||||
|
Inch |
mm |
Plain
|
Inner Box
|
Standard Pack
|
|||
|
2 ½”
|
65mm
|
H65UP
|
– |
52 |
|||
|
3″
|
80mm
|
H80UP
|
– |
32 |
|||
|
4″
|
100mm
|
H100UP
|
– |
16 |
|||
| Specification | ||
|---|---|---|
|
Color
|
White |
|
|
End Connection
|
Plain / Thread
|
|
|
Body
|
100% Virgin Polypropylene
|
|
|
Body Type
|
Solid
|
|
|
Handle
|
100% Virgin Polypropylene
|
|
|
Ball
|
Polypropylene (RP)
|
|
|
O-Ring
|
Nitrile Rubber
|
|
|
Seal
|
EPDM
|
|
|
Handle Cap
|
100% Virgin Polypropylene
|
|
Applications
The PP UPVC Ball Valve Short Handle is suitable for diverse sectors and systems, making it a widely used valve type in India and abroad.
Used in drip, sprinkler, and surface irrigation lines to control water flow to specific sections.
Ideal for water tanks, pipelines, and pump outlets due to compact size and durable construction.
Withstand exposure to mild acids, alkalis, and saline water in laboratories and industrial setups.
Works in fertigation systems where water-soluble nutrients are delivered through irrigation.
Controls flow during treatment, backwashing, and regeneration cycles.
Regulates nutrient-rich water flows in sustainable farming setups.
Key Features & Benefits
Ideal for confined installations without compromising accessibility or torque.
Combines the flexibility and chemical resistance of PP with the strength and dimensional stability of UPVC.
Fast and efficient open-close mechanism requiring minimal force.
Performs well with saline, acidic, or alkaline water conditions.
Ensures a tight seal under pressure; prevents water wastage and system contamination.
Suitable for outdoor installations exposed to sunlight.
Why Choose Ashok Polymers?
Ashok Polymers is a leading manufacturer of industrial and agricultural fluid control products, recognized for its commitment to quality, innovation, and customer satisfaction.
Each valve is made with exact specifications for consistent quality and dimensional accuracy.
Engineered for smooth operation and leak-free performance in demanding conditions.
Reliable delivery timelines and bulk order handling through a nationwide distribution network.
Robust manufacturing capacity to meet demands of both domestic and international clients.
Uses recyclable materials and sustainable production methods.
Responsive pre- and post-sale service to ensure client satisfaction.
